Every covered bus depot has the same overlooked asset: three to six metres of clear air between the top of the vehicle and the structural ceiling. Conventional charging infrastructure ignores this space entirely, placing equipment at floor level where it competes with the bus, the driver, and the ground crew for the same square metres.

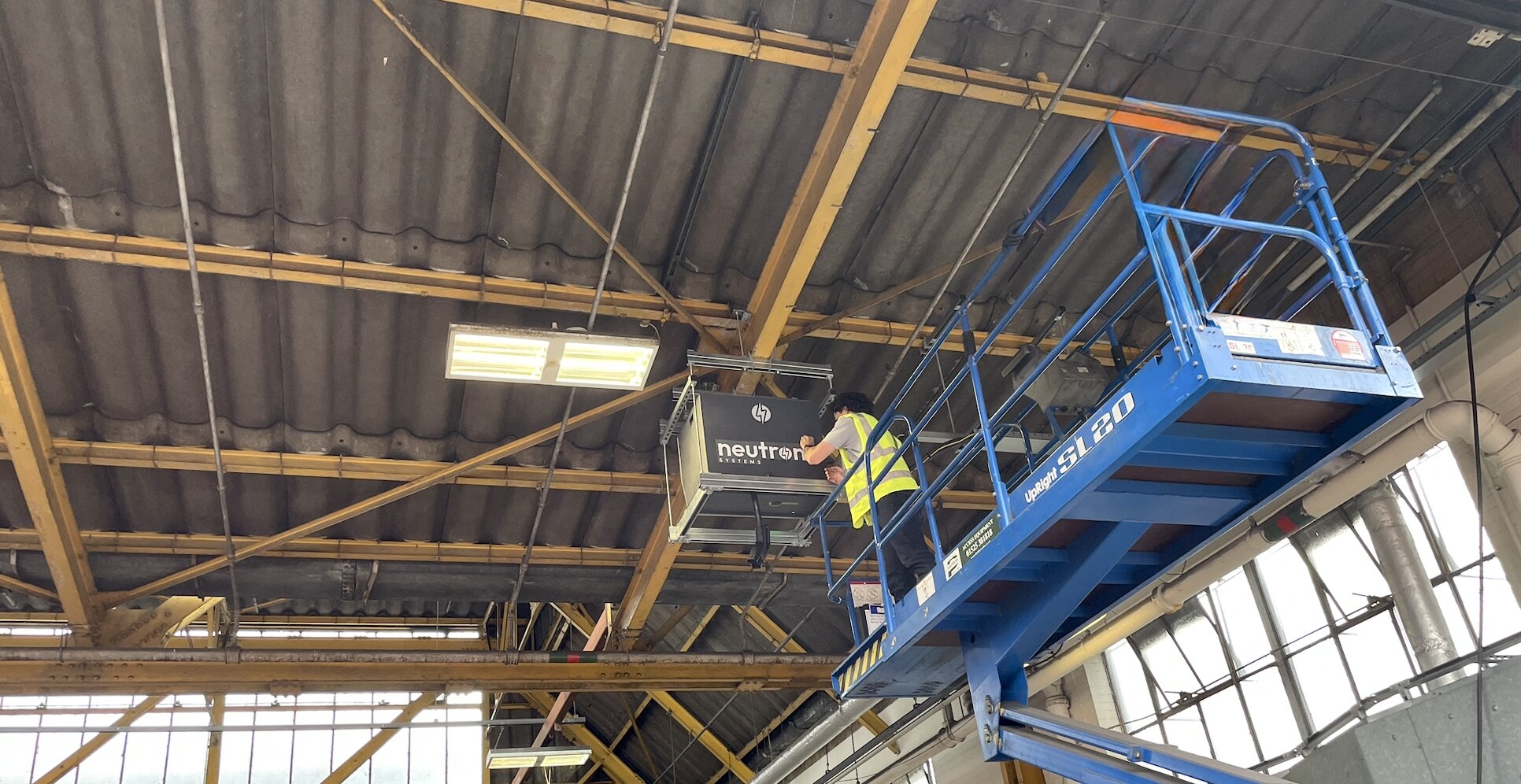

The Neutron NSNF0014DDC Drop-Down Connector inverts this approach. The charging unit mounts to overhead steelwork or a purpose-built gantry. At floor level, there is nothing: no pedestal, no bollard, no cable management trunking, no exclusion zone. Buses manoeuvre into their bays exactly as they have always done. The connector descends when needed and retracts when not.
The overhead principle: in a covered depot, the ceiling void is the one spatial resource that has never been used for vehicle operations. The NSNF0014DDC converts that dead space into productive charging infrastructure without affecting a single square metre of active floor area.
How the Drop-Down Mechanism Works
The NSNF0014DDC is a wall or beam-mounted connector unit attached to the depot's overhead structure. An articulated arm holds the CCS2 or MCS connector head at the correct working height for the vehicle inlet. When a bus parks beneath the gantry point, the driver or ground crew pulls the arm down to vehicle inlet height, connects, and charging begins. The arm returns to its retracted position via counterbalanced tension once disconnected.
Cable routing is entirely overhead: from the Satellite Terminal, cables run along the structural steel or through dedicated cable trays to the mounting point directly above each charging bay. There is no above-floor cabling, no protective conduit at ground level, and no risk of cable damage from vehicle movements.
The unit integrates with the same Satellite Terminal and Master Unit architecture used across Neutron's full connector range. The NSNF0014DDC is simply another output point on the Satellite Terminal: same communications protocol, same power management, same monitoring interface.
The NSNF0014DDC extended from its gantry mount. The counterbalanced arm brings the connector to vehicle inlet height; all cabling is routed overhead through the structural frame.
Why Floor Footprint Matters More Than It Seems
In a 50-bay bus garage, a single conventional pedestal charger requires roughly 2.5 square metres of exclusion zone after bollard setbacks are applied. Across 50 bays, that is 125 square metres of yard space consumed by charging equipment. In a dense urban depot where land costs are measured in thousands per square metre, this is a meaningful operational and financial constraint.
The drop-down connector's contribution to that figure is zero. Overhead cable routes take no bay width from vehicle manoeuvring lanes. The mounting bracket is above head height. Drivers cannot collide with it. Ground crew walk freely beneath it. There is no surface to trip over, no barrier to navigate around, and no physical hardware that could be damaged by a vehicle in motion.
Depot Types Best Suited to Overhead Charging
The NSNF0014DDC performs best where there is overhead structure to mount to and where floor space is the binding constraint. Three environments are consistently well suited:
- Covered bus garages. Steel portal frame structures common to UK bus depots provide ideal mounting points. The existing structural grid often aligns with bay spacing, minimising additional steelwork requirements.
- Logistics distribution centres. High-bay warehousing with 8-12m clear height provides ample room for overhead cable management and allows van and HGV charging without affecting loading dock operations.
- Underground and multi-storey facilities. Where floor area is most constrained and no excavation is practical, overhead mounting via concrete ceiling anchors avoids any groundwork. A suspended gantry rail can serve a row of bays from a single cable entry point.
Integration with the Master-Satellite Architecture
Like all Neutron connector types, the NSNF0014DDC does not contain independent power electronics. Power conversion happens in the Master Unit; distribution management happens in the Satellite Terminal. The drop-down unit at bay level is a cable and connector assembly with communications only, which means it is lightweight, low maintenance, and upgradeable independently of the power infrastructure.
| Component | Location | Role |
|---|---|---|
| Master Unit (240kW / 480kW) | Plant room or external cabinet | AC-DC conversion, grid interface, dynamic power allocation |
| Satellite Terminal | Wall or post mount, bay cluster | Power distribution, metering, communications hub |
| NSNF0014DDC | Overhead, structural frame | Vehicle connection point; cable, connector, and arm only |
This architecture means a depot can mix connector types on a single Satellite Terminal: some bays served by in-ground connectors (NSNF0015GRC), others by drop-down units, and still others by side-mount connectors. Power is allocated dynamically across all bays based on demand, without any fixed per-bay capacity allocation.
Liquid Cooling and High-Power Delivery
At output levels above 150kW, the charging cable becomes the limiting factor. Conventional copper cables at high amperage are stiff, heavy, and difficult to handle, particularly for a connector that must be pulled down and connected manually at each charging event.
The liquid-cooled cable option for the NSNF0014DDC uses coolant circulation through the cable core to remove heat at full rated current. The practical result is a cable that is significantly lighter and more flexible than an equivalent air-cooled cable at the same power level, reducing the effort required to connect and disconnect at each shift change. The cooling circuit is managed by the Satellite Terminal and requires no maintenance at bay level.
Future-Proofing: HV Direct and MCS
Current UK electric buses operate predominantly on 400V DC architecture. The next generation of high-capacity coaches and coaches for long-distance zero-emission routes will require 800V battery platforms and MCS-compatible charging. Neutron's HV Direct capability supports this transition without requiring new civil infrastructure.
When a depot upgrades to HV Direct operation, the NSNF0014DDC connector head can be replaced or adapted at the gantry level. The Satellite Terminal, Master Unit, and overhead cable routes remain in place. The investment in structural mounting and cable infrastructure is not lost as vehicle technology evolves.
HV Direct Ready MCS Compatible Path Liquid Cooling Option CCS2Map the Overhead Potential in Your Depot
Our team will assess your ceiling structure, bay layout, and vehicle mix to design a drop-down charging scheme that uses every metre of your overhead space.
