Commercial DC · Integrated Series

160 to 400 kW.
All-in-one.

No external power cabinet. No additional infrastructure. The integrated DC series puts everything in a single weatherproof enclosure — certified for UK and EU markets.

4
Power levels
2×
CCS2 simultaneous
≥96%
Efficiency
Neutron Systems / Commercial / Integrated DC
Select Power Level

Choose your capacity.

All models share the same industrial design and software platform. Only the power module differs.

160kW
NSNF0032
180kW
NSNF0030
240kW
NSNF0031
400kW
NSNF0033
Common Features

Built into every model.

  • Dual CCS2 guns with simultaneous charging
  • ISO 15118-2 Plug & Charge (PnC)
  • 10.1" full-colour touchscreen display
  • RFID, NFC and App authentication
  • Contactless card payment terminal
  • OCPP 1.6J and OCPP 2.0 support
  • 4G LTE + Ethernet connectivity
  • IP54 weatherproof / IK10 vandal-resistant
  • −30°C to +55°C operating range
  • CE and UKCA certified
  • Neutron Electron CMS compatible

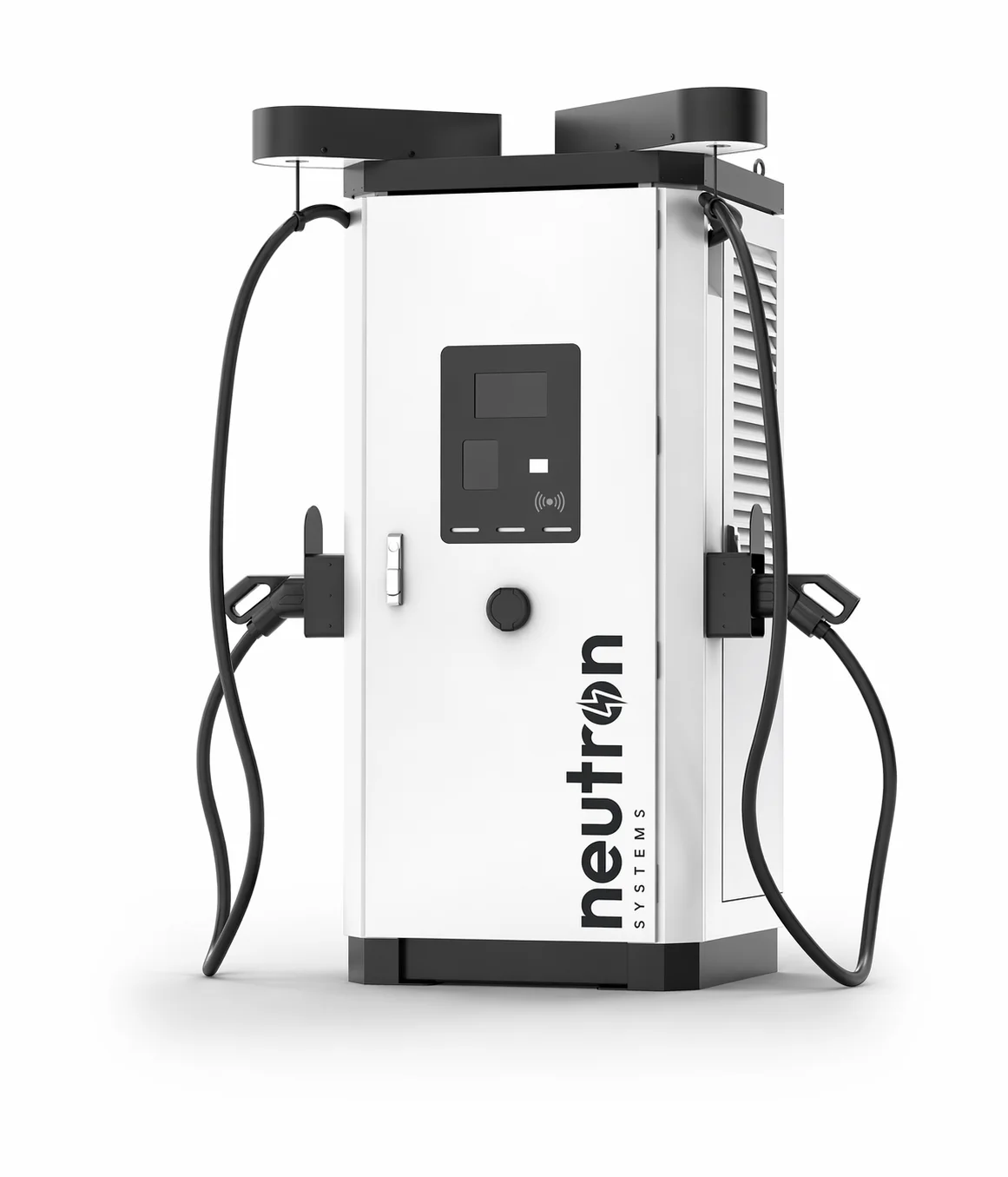

Neutron DC Charger Common Features

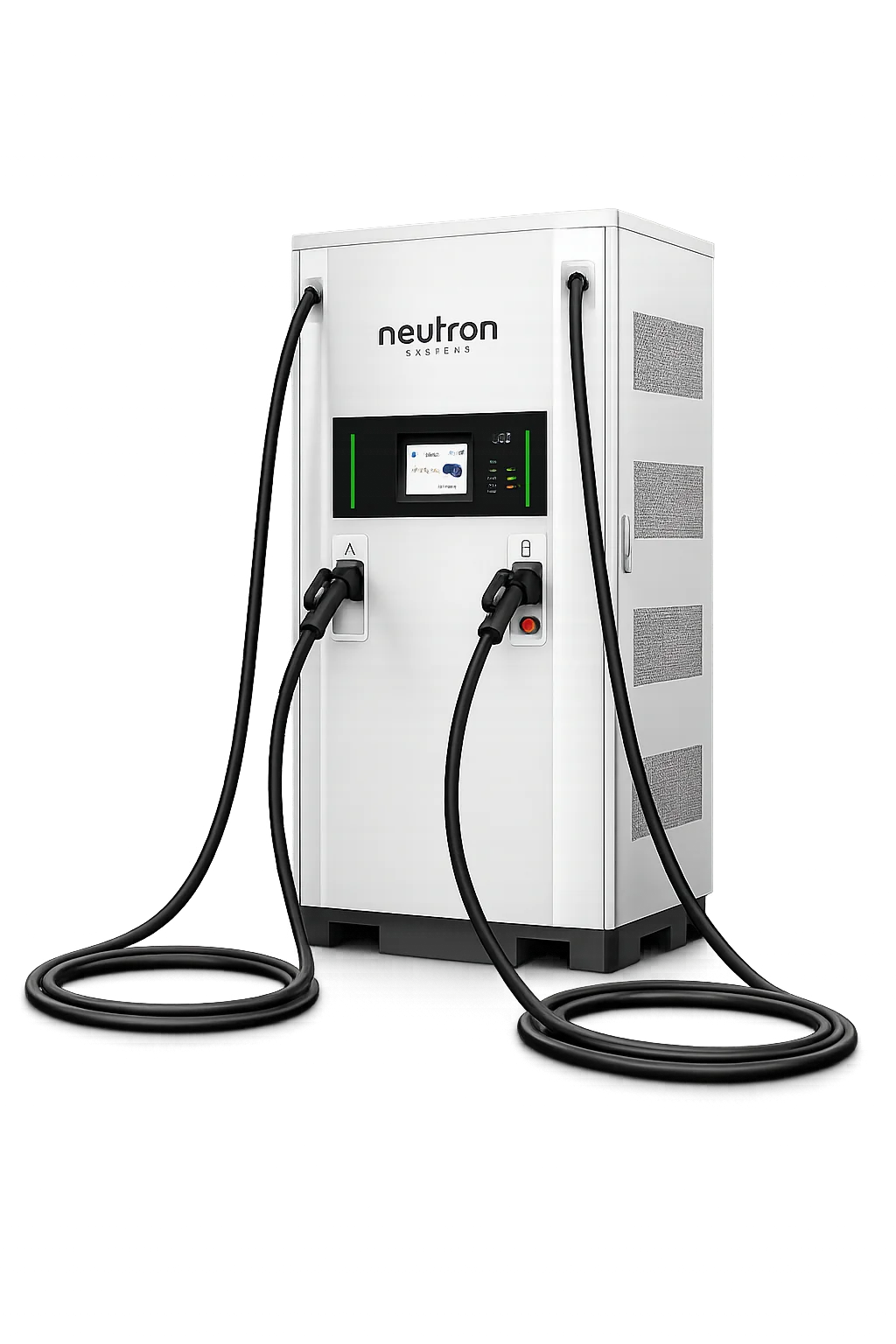

NSNF0030 180kW
NSNF0030
180kW

Compact rapid DC for lower-power sites. Ideal for hotel forecourts, retail car parks, and workplace destinations where 180 kW satisfies the majority of dwell-time charging sessions.

Rated Output Power180 kW
AC Input3-phase 400 V, max 125 A
DC Output Voltage200 – 1000 V DC
Max Output Current2 × 200 A
Efficiency≥ 96%
Power Factor≥ 0.99
Dimensions (H×W×D)1,800 × 600 × 400 mm
Weight~280 kg
Noise≤ 60 dB(A) at 1 m
Request Quote
NSNF0031
240kW

The sweet spot for motorway service areas and destination charging. 240 kW delivers a meaningful top-up for most passenger EVs in under 20 minutes.

Rated Output Power240 kW
AC Input3-phase 400 V, max 190 A
DC Output Voltage200 – 1000 V DC
Max Output Current2 × 300 A
Efficiency≥ 96%
Power Factor≥ 0.99
Dimensions (H×W×D)1,800 × 700 × 400 mm
Weight~320 kg
Noise≤ 62 dB(A) at 1 m
Request Quote
NSNF0031 240kW

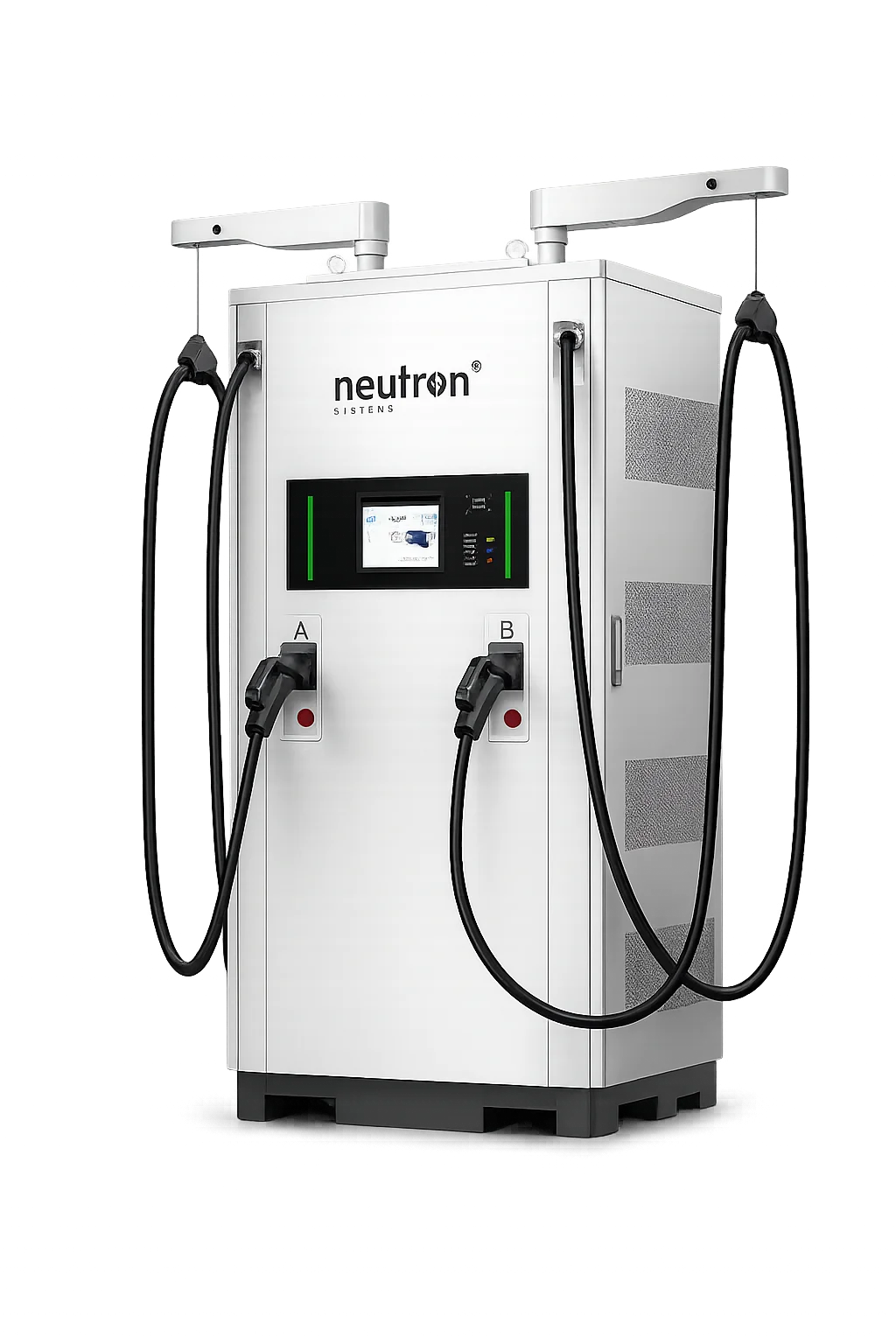

NSNF0032 160kW
NSNF0032
160kW

High-power destination rapid charging for premium locations. At 160 kW, even high-capacity EVs receive a substantial charge within a single dwell-time window.

Rated Output Power160 kW
AC Input3-phase 400 V, max 250 A
DC Output Voltage200 – 1000 V DC
Max Output Current2 × 400 A
Efficiency≥ 96%
Power Factor≥ 0.99
Dimensions (H×W×D)1,800 × 800 × 450 mm
Weight~380 kg
Noise≤ 65 dB(A) at 1 m
Request Quote
NSNF0033
400kW

Ultra-rapid. The flagship commercial integrated unit — 400 kW charges an 800V architecture EV from 10% to 80% in under 18 minutes. Future-proof for the next generation of electric vehicles.

Rated Output Power400 kW
AC Input3-phase 400 V, max 315 A
DC Output Voltage200 – 1000 V DC
Max Output Current2 × 500 A
Efficiency≥ 96%
Power Factor≥ 0.99
Dimensions (H×W×D)1,850 × 900 × 500 mm
Weight~430 kg
Noise≤ 68 dB(A) at 1 m
Request Quote

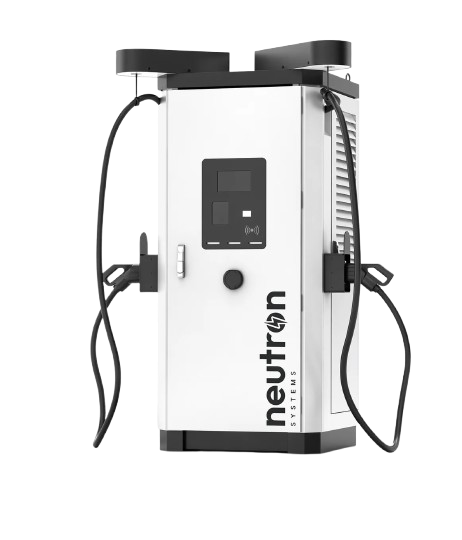

NSNF0033 400kW
Compare All Models

Side by side.

Specification NSNF0032 (160kW) NSNF0030 (180kW) NSNF0031 (240kW) NSNF0033 (400kW)
Rated Output160 kW180 kW240 kW400 kW
AC Input Current250 A125 A190 A315 A
Max Output Current2 × 400 A2 × 200 A2 × 300 A2 × 500 A
DC Voltage Range200 – 1000 V DC
Connectors2 × CCS2
Efficiency≥ 96%
Weight (approx.)~380 kg~280 kg~320 kg~430 kg
OCPP1.6J / 2.0
Plug & ChargeYes (ISO 15118-2)
CertificationsCE, UKCA

Ready to specify your site?

Our team will recommend the right power level for your connection and footfall.

Talk to an Engineer All Commercial Products
