Commercial Charging

For car parks, retail, and beyond.

Integrated AC and DC chargers engineered for public and semi-public destinations. From dual-socket 7 kW AC units to 400 kW rapid DC — built to maximise revenue and uptime.

Megawatt DC DC Terminals DC Integrated Portable DC

DC Terminals

Group Charging System

Up to 250 kW per vehicle. Satellite dispensers share a central Power Cabinet — dynamic load balancing across every bay.

View Product

DC Rapid Charging

Integrated DC Units

All-in-one DC rapid chargers from 180 kW to 400 kW. Self-contained, CCS2, no external cabinet.

View Products

Portable DC

Portable DC Units

20–40 kW portable DC chargers for events, emergency use, and temporary site deployments.

View Products

Liquid-Cooled DC · NSNM0800LC

Megawatt Charging Terminal.
0–80% in 8 minutes.

Power the next generation of electric mobility with Neutron's Liquid-Cooled DC Megawatt Charging Terminal — up to 800 kW group output, 1000 A peak, CCS2 and MCS ready. Built for motorway services, fleet depots, and high-throughput commercial hubs where speed is the product.

Neutron Liquid-Cooled Megawatt DC Terminal NSNM0800LC

800

kW Group Output

1000

A Peak Current

8–10

min 0–80%

Electrical

Group Output Power	Up to 800 kW
Single Dispenser	Up to 800 kW
Peak Output Current	1000 A
Output Voltage	200–1000 V DC
Cable Cooling	Liquid-cooled, integrated
Connectors	CCS2 (standard) · MCS (future-ready)

Connectivity

OCPP	2.0.1
Protocols	ISO 15118-2 (PnC), DIN 70121
Authentication	RFID, App, Plug & Charge
Network	Ethernet, 4G LTE, Wi-Fi
CMS Integration	Electron CMS

Physical

Configuration	Master Unit + Control Cabinet
Display	15.6" colour touchscreen
Protection Rating	IP54 / IK10
Operating Temperature	−30°C to +55°C
Efficiency	≥ 96%
Certifications	CE, UKCA

CCS2 MCS Ready Liquid-Cooled OCPP 2.0.1 Plug & Charge ISO 15118

Request Quote

DC Terminals · Group Charging System

Satellite dispensers.
One cabinet, every bay.

Compact floor-mounted DC dispensers that connect to a shared Power Cabinet — delivering up to 250 kW per vehicle while dynamically balancing load across the array. Ultra-wide 50–1000 V output covers every EV on the market.

CCS2 Group Charging 250 kW OCPP 1.6J IP54 / IK10

Single CCS2

Dual CCS2

Group Charging Architecture

250

kW per vehicle

1000

V DC output

IP54

IK10 rated

Dispensers share a common DC bus from a central Power Cabinet. As vehicles finish charging, their allocated capacity is redistributed instantly across the remaining bays — zero wasted headroom.

Electrical

Output Voltage	50–1000 V DC
Max Output Power	Up to 250 kW (single CCS2) · 200 kW (dual CCS2)
Max Output Current	200 A (250 A optional)
Connectors	CCS2 × 1 (single) · CCS2 × 2 (dual)
Cable Length	4 m (single CCS2) · 5 m (dual CCS2)
Cooling	Natural convection

Interface & Connectivity

Display	7" LCD touchscreen
Authentication	RFID (ISO 14443A) · App · Screen · POS (optional)
OCPP	1.6J
CMS Integration	Electron CMS

Physical

Dimensions	363 × 363 × 1518 mm (W × D × H)
Protection Rating	IP54 · IK10 (screen IK08)
Operating Temperature	−30°C to +50°C
Operating Altitude	≤ 2000 m
Certifications	CE · CB · TÜV Mark · RoHS · UKCA
Standards	IEC / EN 61851-1 · 61851-23 · 61851-24

CCS2 Group Charging OCPP 1.6J IP54 / IK10 250 kW UKCA

Request Quote

Model Comparison

Specification	TZD-1000/200CNCN4 Single CCS2	TZD-1000/200CCCN5 Dual CCS2
Output Power	Up to 250 kW	Up to 200 kW
Connectors	CCS2 × 1	CCS2 × 2
Max Current	200 A (250 A optional)	200 A
Cable Length	4 m	5 m
Net Weight	41 kg	56 kg
Best suited for	Single-bay, max throughput	High-density deployments

AC Charging · NSNF0012DSAC

Dual Socket AC Station

Two vehicles, one unit. The NSNF0012DSAC delivers simultaneous 7 kW or 22 kW charging via Type 2 tethered or socket connections — designed for dwell-time locations.

Neutron NSNF0012DSAC Dual Socket AC Charging Station — front view

Neutron NSNF0012DSAC Dual Socket AC Charging Station — angled view

2×7

kW (Single Phase)

2×22

kW (Three Phase)

Electrical

Output Power	2 × 7 kW or 2 × 22 kW
AC Input	1-phase 230 V / 3-phase 400 V
Output Current	32 A per socket
Connector	2 × Type 2 (IEC 62196-2)
Mode	Mode 3 (IEC 61851-1)

Connectivity

OCPP	1.6J / 2.0
Network	Ethernet, 4G LTE, Wi-Fi
Authentication	RFID ISO 14443 A/B, App
Payment	Contactless (optional)
Remote Management	Via Electron CMS

Physical

Protection Rating	IP54
Impact Rating	IK10
Operating Temperature	−30°C to +50°C
Display	4.3" colour screen
Mounting	Pedestal or wall mount
Certifications	CE, UKCA, OZEV compliant

Type 2 RFID Auth OCPP 2.0 OZEV Compliant

Request Quote

Minimise

fleet

downtime.

with Neutron's rapid deploy chargers
designed specifically
for commercial fleets.

DC Rapid Charging · NSNF0030 – NSNF0033

Integrated DC.
180 to 400 kW.

All power electronics integrated in a single compact enclosure — no external cabinet, no additional civil works. Four power levels to match your site's grid connection.

NSNF0032

160 kW

High-power destination rapid charging — covers most passenger EVs at maximum rate.

Specifications

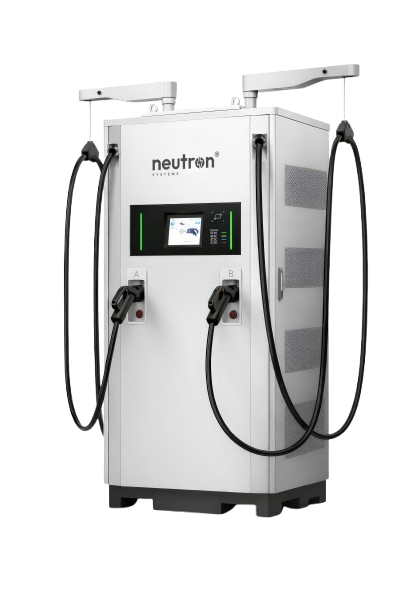

NSNF0030

180 kW

Entry rapid DC. Ideal for retail parks and hotels with limited grid headroom.

Specifications

NSNF0031

240 kW

Mid-range rapid DC for motorway service areas and busy retail destinations.

Specifications

NSNF0033

400 kW

Ultra-rapid DC for premium hubs. Future-ready for next-gen 800V vehicles.

Specifications

Common Specifications — NSNF0030 to NSNF0033

Output Voltage	200 – 1000 V DC
Connectors	2 × CCS2 (simultaneous)
Protocols	ISO 15118-2 (PnC), DIN 70121
OCPP	1.6J / 2.0
Authentication	RFID, NFC, App, Plug & Charge
Payment	Contactless card reader

Display	10.1" colour touchscreen
Protection	IP54 / IK10
Operating Temperature	−30°C to +55°C
Efficiency	≥ 96%
Certifications	CE, UKCA
Warranty	3 years standard

Full DC Specifications

Portable DC · NSNF0040 – NSNF0042

Charge anywhere.

Wheeled portable DC units for events, construction sites, emergency deployments, and temporary charging needs. No permanent installation required.

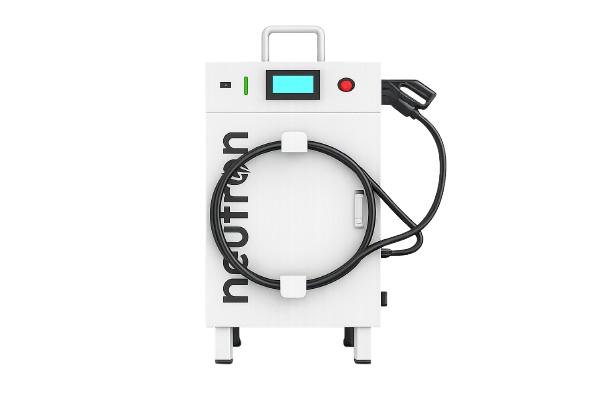

NSNF0040

20 kW Portable

Compact wheeled unit. Suitable for light EVs and plug-in hybrids. 16 A three-phase input.

Output	20 kW DC
Input	3-phase 16 A
Connector	CCS2
Weight	~60 kg (with wheels)

Specifications

NSNF0041

30 kW Portable

Mid-range portable rapid charger. Ideal for events and emergency fleet support.

Output	30 kW DC
Input	3-phase 32 A
Connector	CCS2
Weight	~80 kg (with wheels)

Specifications

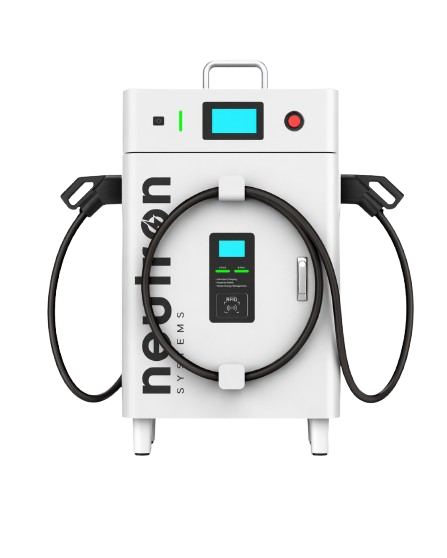

NSNF0042

40 kW Portable

Highest-power portable unit. Charges most EVs at a meaningful rate — suitable for logistics emergency response.

Output	40 kW DC
Input	3-phase 63 A
Connector	CCS2
Weight	~100 kg (with wheels)

Specifications

Common to all portable units

OCPP 1.6J 4G LTE RFID Auth IP54 Integrated wheels CEE63A input CCS2 output CE certified

Full Specifications

Space Saving Solutions

Maximise parking.
Minimise footprint.

When floor space is at a premium, Neutron's overhead drop-down and in-ground retractable chargers fold away completely when not in use. Designed for high-density bus, coach, and HGV depots where obstructions cannot be tolerated.

In-ground retractable — retracts flush with floor surface
Overhead drop-down — mounts to ceiling or gantry
Compatible with all major bus, coach, and truck platforms
Powered by Neutron Master Unit — same DC architecture

View Connector Options

Space Saving Solutions

Retract when
not in use.

Built for high-traffic environments.

Overview

All Commercial products.

Model	Type	Power	Connectors	IP	Best For
NSNF0012DSAC	Dual AC	2 × 7 or 22 kW	2 × Type 2	IP54	Car parks, workplaces
NSNF0030	Integrated DC	80 kW	2 × CCS2	IP54	Retail, hotels
NSNF0031	Integrated DC	120 kW	2 × CCS2	IP54	MSAs, retail
NSNF0032	Integrated DC	160 kW	2 × CCS2	IP54	Destination rapid
NSNF0033	Integrated DC	200 kW	2 × CCS2	IP54	Ultra-rapid hubs
NSNF0040	Portable DC	20 kW	CCS2	IP54	Events, temporary
NSNF0041	Portable DC	30 kW	CCS2	IP54	Events, emergency
NSNF0042	Portable DC	40 kW	CCS2	IP54	Logistics emergency
