Home AC Charging

Smart charging. Simply done.

7 kW home chargers designed for UK and European residential use. OCPP-connected, IP65-rated, and compatible with solar and time-of-use tariffs.

Wall Mount — NSNH0001T Pedestal — NSNH0002U

Product Range

Two installations.
One smart platform.

The wall mount and pedestal share identical charging hardware and software — choose the form factor that fits your installation.

NSNH0001T

Wall Mount

Compact wall-mounted unit for garages and carports. Tethered Type 2 cable. The most popular home charger installation.

Free-standing pedestal for driveways without a wall nearby. Same 7 kW output, identical software — perfect for detached garages or open driveways.

7 kW IP65 OCPP 1.6J

View Details

Smart Charging

Charge smarter.
Spend less.

Solar Surplus Charging

Automatically charge when your solar panels are generating more than your home needs — using free, clean energy.

Off-Peak Scheduling

Set a departure time and let the charger automatically charge during the cheapest tariff window. Works with Octopus Agile and similar UK tariffs.

Energy Monitoring

Track session energy, cost, and carbon intensity via the Neutron app. Export to CSV for HMRC mileage reimbursement records.

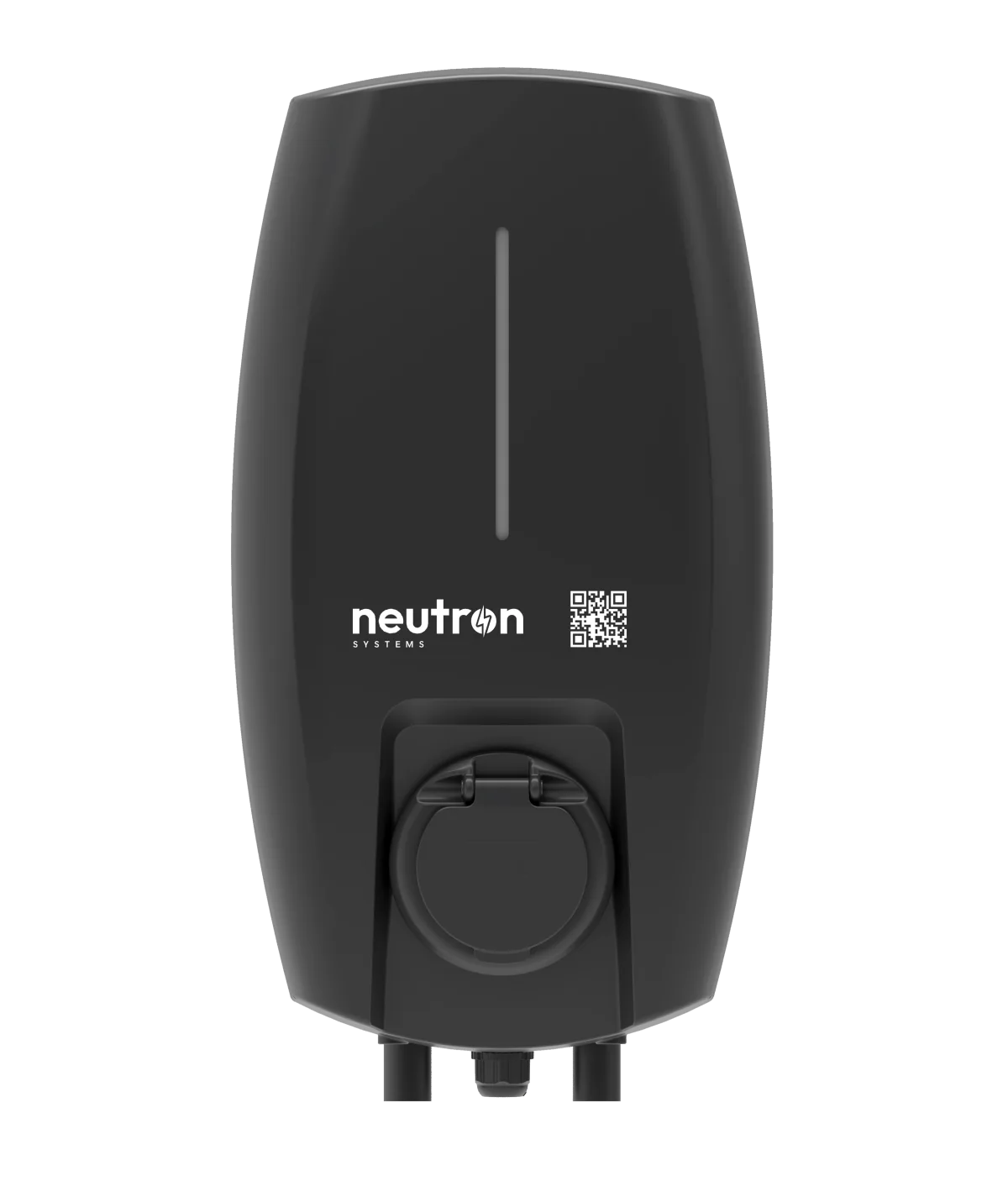

NSNH0001T

Wall Mount
Home Charger

The cleanest home charging installation. Mounts flush to a garage wall — slim, weatherproof, and smart enough to handle every charging scenario automatically.

Electrical

Charging Power	7 kW (single-phase, 32 A)
AC Input	230 V, 50 Hz, single-phase
Output Current	6 – 32 A (adjustable)
Charging Mode	Mode 3 (IEC 61851-1)
Connector	Type 2 tethered, 5 m cable
Energy Metering	MID-approved kWh meter

Communications

OCPP Version	OCPP 1.6J
Network	Wi-Fi 2.4 GHz, optional 4G
Authentication	RFID ISO 14443 A/B, App (Bluetooth + cloud)
App	iOS / Android — schedule, monitor, control
Smart Tariff Integration	Octopus Agile, Economy 7, custom schedule
Solar Integration	CT clamp or inverter API (SolarEdge, SMA, Solis)
Remote Management	Via Electron CMS

Physical

Dimensions (H×W×D)	280 × 180 × 115 mm
Weight	2.8 kg (unit only)
Enclosure Rating	IP65
Operating Temperature	−30°C to +50°C
Colour	Matte white / matte black (both included)
LED Status	Multi-colour status ring
Mounting	Wall mount (fixings included)

Safety & Compliance

Standards	IEC 61851-1, BS 7671
Certifications	CE, UKCA, OZEV-approved
RCD Protection	6 mA DC blind + Type A RCD (integrated)
Earth Protection	PE monitoring, earth fault detection
Cable Lock	Electronic cable lock (anti-theft)
Grid Integration	Smart charge ready (SMETS2)
Warranty	3 years

Request Quote / Find Installer

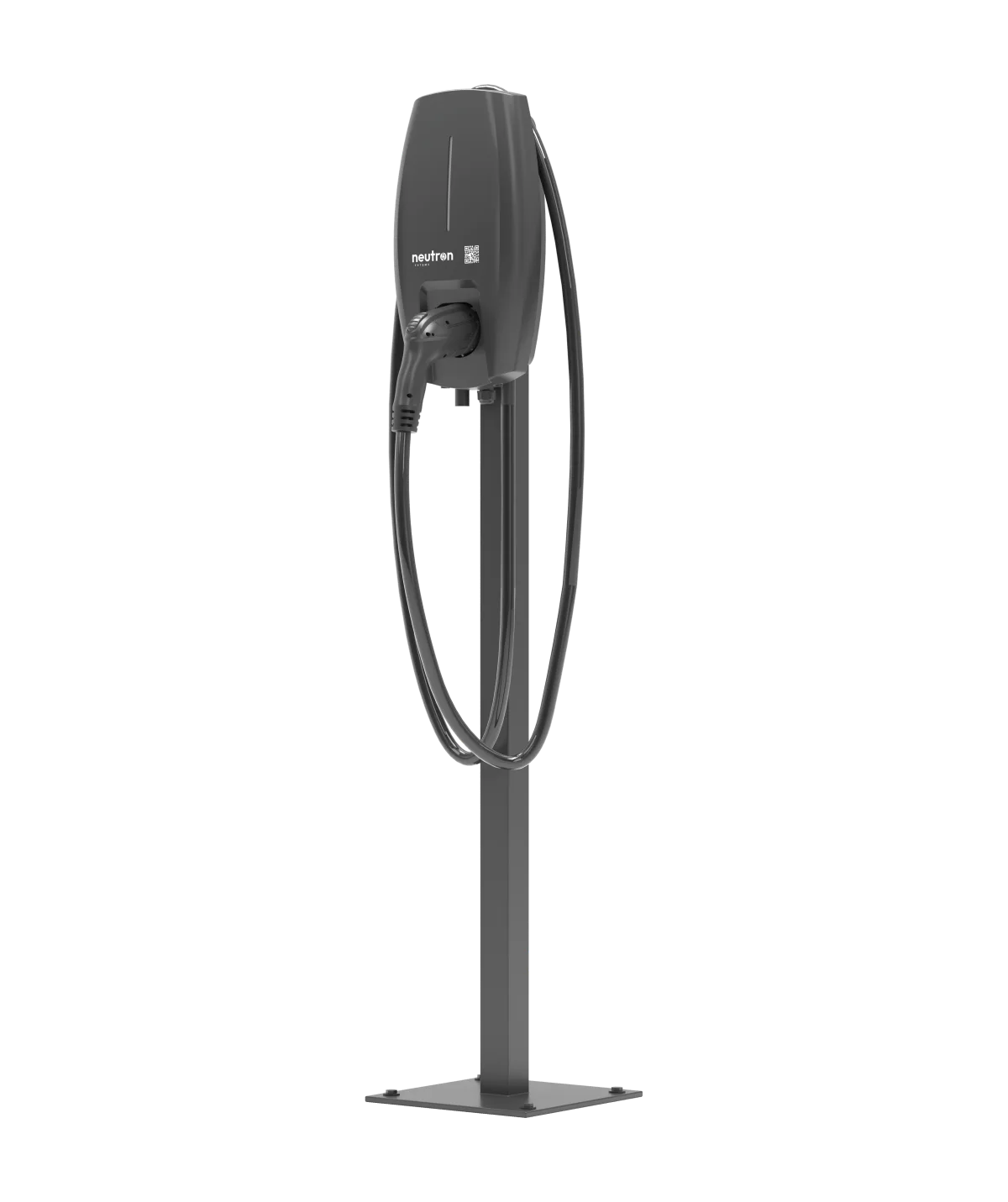

NSNH0002U

Pedestal
Home Charger

Same smart charging capability as the wall mount — on a free-standing pedestal. Ideal for driveways without a nearby wall, or wherever a floor-mounted unit gives a cleaner installation.

Charging Power	7 kW (32 A, single-phase)
Connector	Type 2 tethered, 5 m
OCPP	OCPP 1.6J
Network	Wi-Fi, optional 4G
Authentication	RFID, App
Protection Rating	IP65
Operating Temperature	−30°C to +50°C
Enclosure	Floor-standing pedestal, anti-corrosion finish
Height	1,050 mm (cable entry from below)
Certifications	CE, UKCA, OZEV-approved
Warranty	3 years

OZEV Approved MID Metered RFID Auth Solar Ready

Request Quote / Find Installer

Compare

Wall vs Pedestal

Specification	NSNH0001T (Wall)	NSNH0002U (Pedestal)
Charging Power	7 kW (32 A, Mode 3)
Connector	Type 2 tethered, 5 m
OCPP	1.6J
IP Rating	IP65
Mounting	Wall (flat surface)	Floor pedestal
Best For	Garages, carports with wall	Open driveways, detached garages
Certifications	CE, UKCA, OZEV-approved
Warranty	3 years
